Coretex Lightweight Sandwich Panels – Guidelines
An overview of our product range and panel design guidelines
- Lightweight & Strong
- Excellent stiffness
- Typical sizes 1250mm x 2500mm – 1500mm x 3000mm. Larger on request
- Skins: Aluminium, Steel, GRP, MDF, PVC Plywood, etc
- Cores: XPS Foam, PET Foam, PP Honeycomb, Kraft Paper Honeycomb, Aluminium Honeycomb
- Maintenance free options
- Insulating options
- Fully recyclable options
Typical applications:
- Architectural Building Cladding
- Architectural Rain Screen Facades
- Lightweight Interior Architectural Panels
- Lightweight Exhibition Panels
- Aerospace, Marine & Transport Flooring
- Walls & Partitions
- Silk Screen Printing Tables
- CNC Vacuum Bases
- Lightweight Floors, Walls, Ceilings
- Special Purpose Panel Design
Coretex Larcore®
A2 Fire Rated Aluminium Honeycomb Panels
- Lightweight – from 5.5Kg/sqm
- Excellent Flatness and rigidity
- High Compressive strength
- A2 Fire rated to EN
- Approved for Marine and Railway applications
- Easy machining
- UK Stock item for fast delivery
- Stocked as 6/10/15/20/25/30/40mm thick x 1500mm x 3120mm

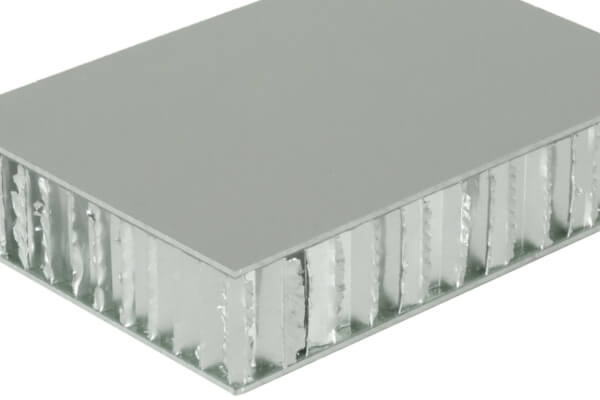

Coretex AluLite™ AHC
Lightweight Aluminium Honeycomb Panel
ALI/AHC/ALI
- Very Lightweight
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Excellent Flatness
- Easy to Cut and Fabricate
- Easy to Paint and Glue
- Generic Fire Class 1 BS476 Pt7
Typical applications:
- Lightweight Tooling Boards
- Lightweight Monocoque Chassis
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Marine/Train Wall Panels
- Lightweight Ramps
- Lightweight Machine Covers
- Options: Designs to suit your weight

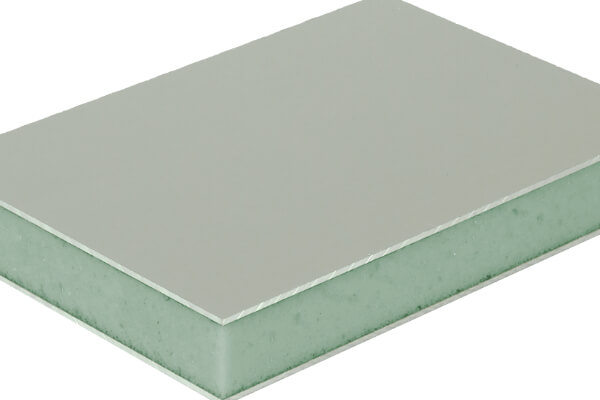

Coretex AluLite™ PET
Lightweight PET Foam Core Panel
ALI/PET/ALI
- Very Lightweight
- Rigid and Structural
- Thermal Insulator
- Moisture Resistant
- Excellent Flatness
- Easy to Cut and Fabricate
- Easy to Edgeband, Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Monocoque Chassis
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Marine/Train Wall Panels
- Lightweight Ramps
- Lightweight Machine Covers

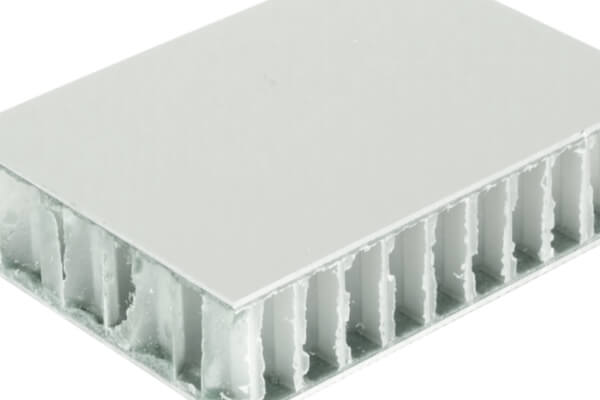

Coretex AluLite™ PP
Lightweight PP Honeycomb Panel
ALI/PP/ALI
- Very Lightweight
- Rigid and Structural
- Insulated
- Energy Absorbing
- Sound Absorbing
- Excellent Flatness
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Monocoque Chassis
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Stone / Marble backing
- Lightweight Ramps
- Lightweight Machine Covers
- Lightweight Furniture Panels

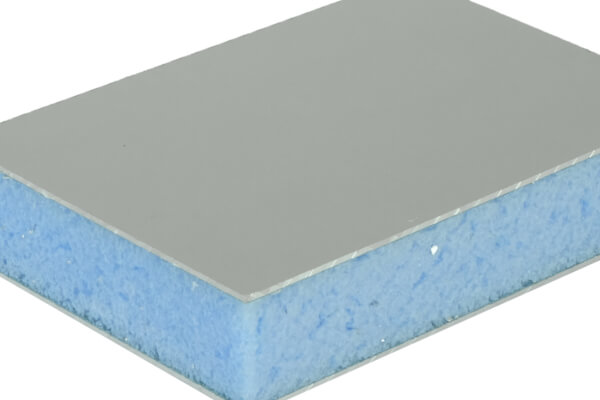

Coretex AluLite™ XPS
Lightweight XPS Foam Core Panel
ALI/XPS/ALI
- Very Lightweight
- Rigid and Structural
- Thermal Insulator
- Energy Absorbing
- Moisture Resistant
- Excellent Flatness
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Monocoque Chassis
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Marine/Train Wall Panels
- Lightweight Ramps
- Lightweight Machine Covers

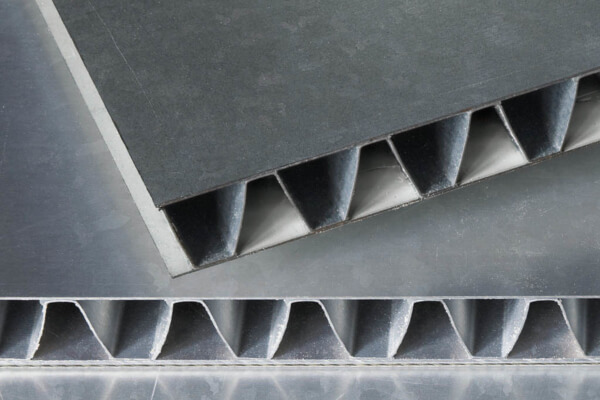

Coretex StaluFlex AL
Lightweight Aluminium Corrugated Panel
ALI/ACC/ALI
- Very Lightweight
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Good Flatness
- Easy to Cut and Fabricate
- Easy to Paint and Glue
- Fire Class A1
Typical applications:
- Corrugated core for ventilation and cable access
- Lightweight Tooling Boards
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Marine/Train Wall Panels
- Lightweight Ramps
- Lightweight Machine Covers
- Options: Designs to suit your weight limit
Coretex StaluFlex ZN
Lightweight Galvanised Steel Corrugated Panel
STL/SCC/STL
- Lightweight & Magnetic
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Good Flatness
- Easy to Cut and Fabricate
- Easy to Paint and Glue
- Fire Class A1
Typical applications:
- Corrugated core for ventilation and cable access
- Robust Security Panels
- High Load Bearing Floors
- Robust Architectural Panels
- Heavy Duty Floor/Wall/Ceiling Panels
- Heavy Duty Ramps
- Options: Designs to suit your weight limits

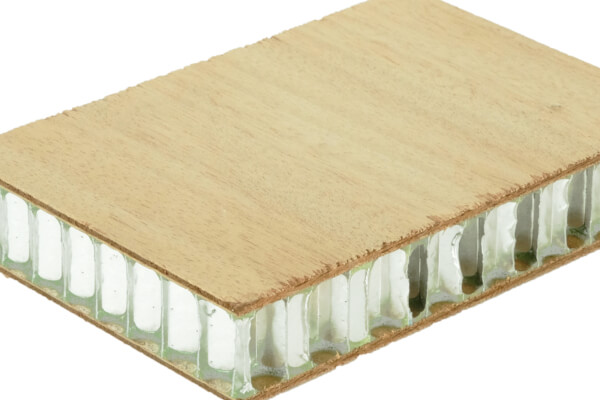

Coretex TimberLite™
Lightweight Timber Panel
PLY/PP/PLY - PLY/AHC/PLY - PLY/XPS/PLY - MDF/PP/MDF - MDF/AHC/MDF - MDF/XPS/MDF
- Lightweight
- Up to 70% less than solid Timber/Ply/MDF
- Rigid and Structural
- Impact Resistance
- Edging and Framing
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Theatre & Scenery Panels
- Lightweight Exhibitions Panels
- Lightweight Flight Case Panels
- Lightweight Furniture
- Lightweight Doors
- Lightweight Tables
- Lightweight Wall Panels
- Lightweight Floor Panels

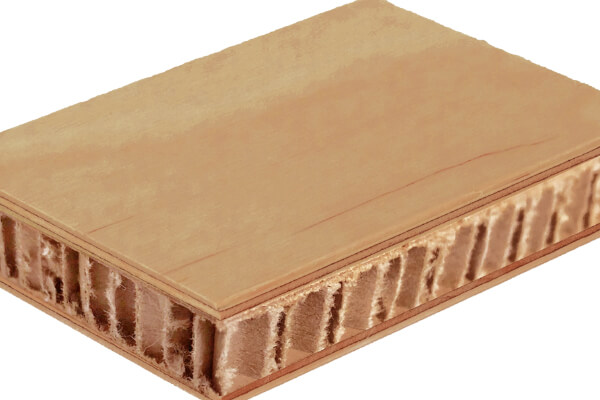

Coretex TimberLite ECO™
Lightweight Timber Faced Panel with High Strength Paper Honeycomb Core (PHC)
PLY/PHC/PLY - MDF/PHC/MDF - MFMDF/PHC/MFMDF
- Lightweight – from 3.0Kg/sqm
- Up to 80% less weight than solid Timber/Plywood/MDF
- Rigid and Structural
- 100% Recyclable and Combustible
- Impact Resistance
- Easy Edging and Framing
- Easy to Cut and Fabricate
- Easy to Paint and Glue
- FSC Approved
Typical applications:
- Lightweight Theatre & Scenery Panels
- Lightweight Exhibitions Panels
- Lightweight Furniture
- Lightweight Doors
- Lightweight Tables
- Lightweight Wall Panels
- Lightweight Floor Panels

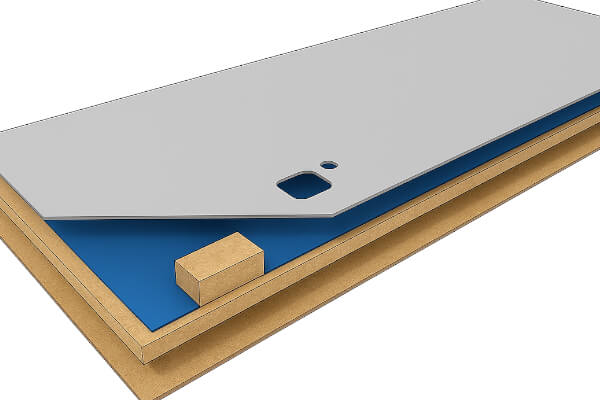

Coretex Timberlite™ Door Blanks
Lightweight Door and Furniture Blanks
- Lightweight
- Up to 70% less than solid Timber/Ply/MDF
- Rigid and Structural
- Timber / Edge Frames
- Hard inserts
- CNC Routing / Drilling
- Made to measure
- Easy to Paint and Glue
- Easy to Cut and Fabricate
- Easy to Paint and Veneer
Typical applications:
- Lightweight Doors
- Lightweight Exhibitions Panels
- Lightweight Theatre & Scenery Panels
- Lightweight Tables
- Lightweight Furniture
- Lightweight Wall Panels

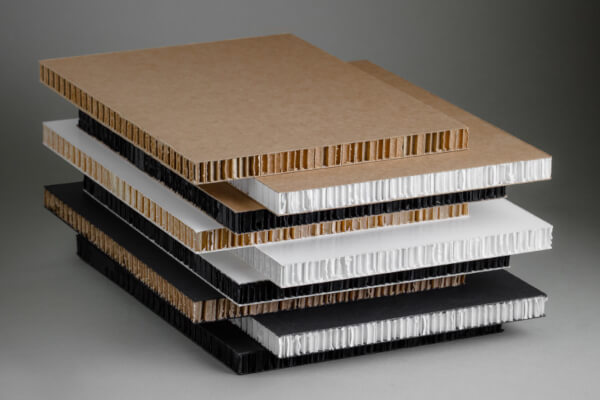

Coretex Kraft Paper Honeycomb Panels
100% Recycled and Recyclable Kraft Paper Honeycomb
- Very Lightweight – from 1.3Kg/sqm @ 10mm
- Excellent Flatness and rigidity
- High Compressive strength
- Made from 100% Recyclable Kraft Paper
- 100% Recyclable Waste
- Easy printing, cutting, machining and laminating
- Standard Panels as 5/10/15/20/25/30/40mm x 1250mm x 2500mm
- Many bespoke size options and CNC cutting available
Fields of application:
- Ultra-light air freight pallets
- Pallet bases and runners
- Export pallets (non-wood certificate) and pallet kits
- Display pallets for the food sector with enclosed surfaces around
- Protective containers for high-quality and sensitive products
- Cover boards and edge protection strips
- Packaging materials
- Sectional boards (e.g. for rolls of film)

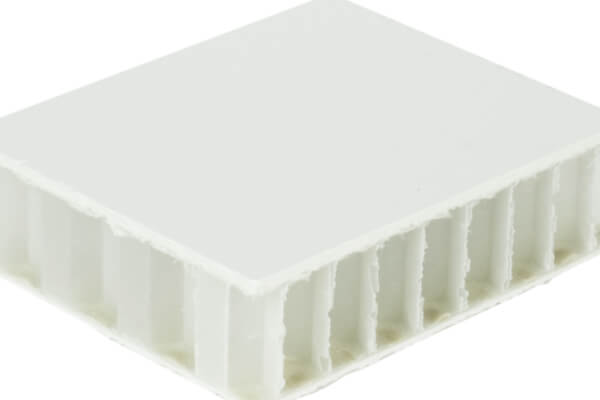

Coretex TransLite™
Lightweight GRP Transport Panel
GRP/PP/GRP
- Lightweight: From 4+Kg/sqm
- Rigid and Structural
- Impact Resistance
- Water and Rot proof
- Resists Acid and Alkalis
- Easy to Vinyl Wrap
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Delivery Trucks
- Lightweight Horse Boxes
- Lightweight Flight Cases
- Lightweight Mobile Catering Units
- Lightweight Water Proof Panels
- Lightweight Mobile Toilet Units
- Lightweight Wall Panels
- Lightweight Machine Covers

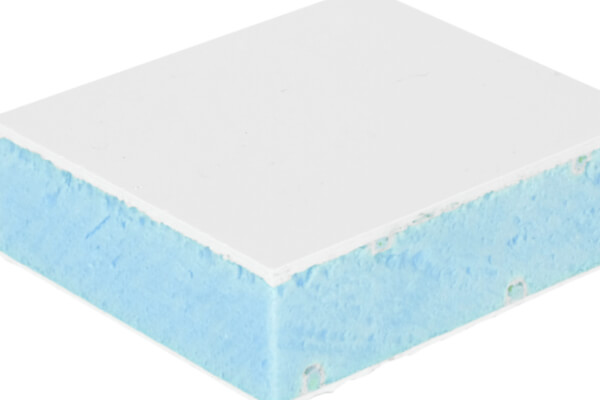

Coretex GRPLite™ XPS
Lighweight GRP XPS Foam Core Panel
GRP/XPS/GRP
- Lightweight: 5+Kg/sqm
- Rigid and Structural
- Thermal Insulator
- Water and Rot Proof
- Resists Acids and Alkalis
- Easy to Vinyl Wrap
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Delivery Trucks
- Lightweight Horse Boxes
- Lightweight Flight Cases
- Lightweight Mobile Catering Units
- Lightweight Flight Cases
- Lightweight Water Proof Panels
- Lightweight Mobile Toilet Units
- Lightweight Wall Panels
- Lightweight Machine Covers

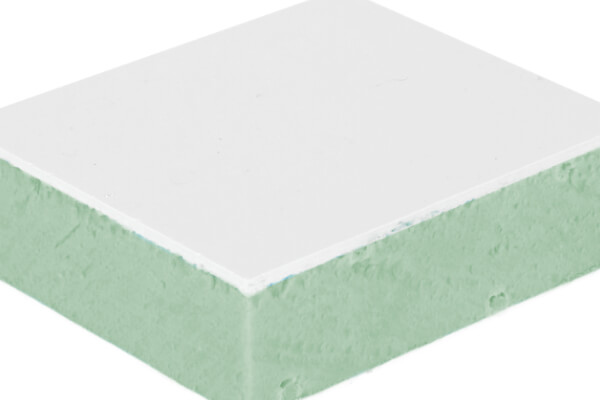

Coretex GRPLite™ PET
Lighweight GRP PET Foam Core Panel
GRP/PET/GRP
- Lightweight: 5+Kg/sqm
- Rigid and Structural
- Thermal Insulator
- Water and Rot Proof
- Easy to Paint and Glue
- Easy to Vinyl Wrap
- Easy to Cut and Fabricate
- Made from 100% Recycled PET
Typical applications:
- Lightweight Delivery Trucks
- Lightweight Horse Boxes
- Lightweight Flight Cases
- Lightweight Mobile Catering Units
- Lightweight Flight Cases
- Lightweight Water Proof Panels
- Lightweight Mobile Toilet Units
- Lightweight Wall Panels
- Lightweight Machine Covers

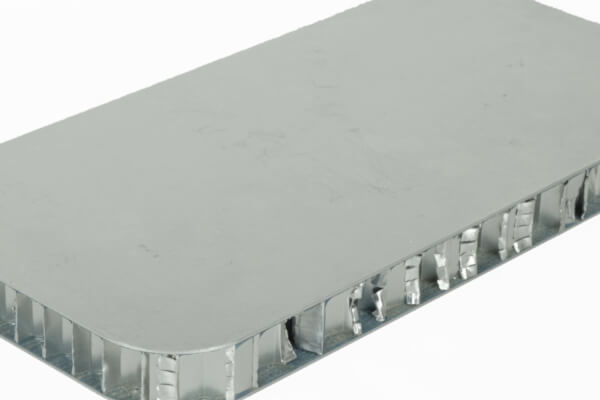

Coretex UltraLite™ ALI AHC
Ultra Lightweight Aluminium Honeycomb Panel
ALI/AHC/ALI
- Lightweight: From 3.7+Kg/sqm
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Excellent Flatness
- Fire Class 1 BS476 Pt7
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Marble / Stone Panels
- Lightweight Architectural Panels
- Lightweight Flight Cases
- Lightweight Ramps
- Lightweight Monocoque Chassis
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Marine/Train Wall Panels
- Lightweight Machine Covers

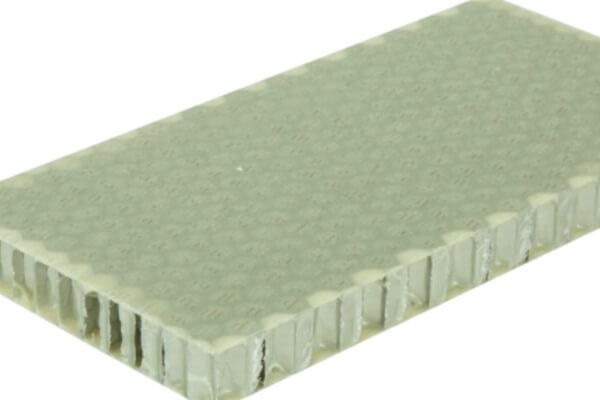

Coretex UltraLite™ EGP AHC
Ultra Lightweight GRP Panel
EGP/AHC/EGP
- Lightweight – 3+Kg/sqm
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Excellent Flatness
- Peel Ply Option
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Marble / Stone Panels
- Lightweight Architectural Panels
- Lightweight Flight Cases
- Lightweight Ramps
- Lightweight Monocoque Chassis
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Marine/Train Wall Panels
- Lightweight Machine Covers
Coretex UltraLite™ EGP rPET
Ultra Lightweight GRP Panel
EGP/rPET/EGP
- Lightweight – 3+Kg/sqm
- Rigid and Structural
- Thermal Conductor
- Energy Absorbing
- Excellent Flatness
- Peel Ply Option
- Easy to Cut and Fabricate
- Easy to Paint and Glue
Typical applications:
- Lightweight Tooling Boards
- Lightweight Marble / Stone Panels
- Lightweight Architectural Panels
- Lightweight Flight Cases
- Lightweight Ramps
- Lightweight Monocoque Chassis
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Marine/Train Wall Panels
- Lightweight Machine Covers

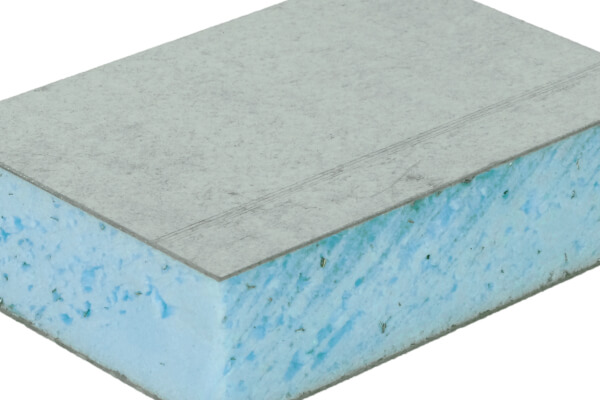

Coretex SteelLite™ XPS
Lightweight Steel Panel
STL/XPS/STL
- Lightweight: 10kg/sqm
- Rigid and Structural
- Thermal Insulator
- Energy Absorbing
- Magnetic
- Excellent Flatness
- Easy to Cut and Fabricate
- Painted skin options
Typical applications:
- Lightweight Architectural Panels
- Lightweight Floor/Wall/Ceiling Panels
- Lightweight Flight Cases
- Lightweight Marine/Train Wall Panels
- Lightweight Ramps
- Lightweight Machine Covers

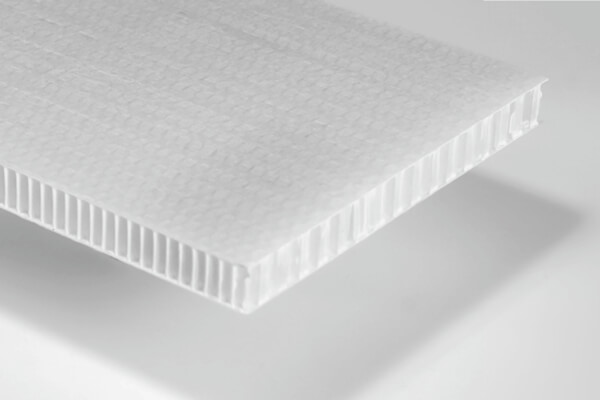

Coretex Lightweight Thermoplastic Sandwich Panels
Thermoformable PP and Glass Fibre Thermoplastic Sandwich Panels
- Tough PP and Glass Fibre matrix skin
- Lightweight & Strong
- Excellent stiffness
- Thermoformable and Weldable
- 100% Recyclable
- PP Honeycomb Core
- PP Foam Core – High U value
- Bondable and Paintable skins
- Wide range of panel thicknesses and sizes
- Maintenance Free
Typical applications:
- Lightweight Monocoque Welded Units
- Lightweight Truck and Van Panels
- Lightweight Furniture Panels
- Lightweight Stage and Exhibition Panels
- Lightweight Floors, Walls, Ceilings
- Thermoformed Vehicle Interiors
- Impact Absorbing Panels
- Lightweight Concrete Shuttering Panels
- Lightweight Rigid Water Tanks
Coretex High Volume Sandwich Panel Production
High Volume Panel Manufacturing
- Lowest cost processing
- Latest Advanced Automated Laminating Equipment and Adhesives
- Capacity 1000+ sqm per day
- Repeatable Quality and Fast turnaround
- Typical panel size 2500mm x 1250mm to 3000mm x 1500mm – larger on request
- Skins: Aluminium, Steel, GRP, MDF, OSB, Plywood, PVC, ABS, etc
- Cores: EPS, XPS, PIR Foams, PP Honeycombs, MDF, Timber, etc
Benefits:
- UK Based Manufacture
- Very competitive pricing
- Repeatable Quality
- Fast turnaround
- Special Purpose Panel Design
- Technical Guidance
- Ideal for SIP Panel Production
- Subcontract – offload production peaks
- Export shipping available
